Community facility Spinelli

Mannheim, Germany

Licht- und Schattenspiel 1 | Licht- und Schattenspiel
Refugees, who are otherwise condemned to passivity, have been given the opportunity to get involved and actively participate in shaping their environment without any previous quality of living.

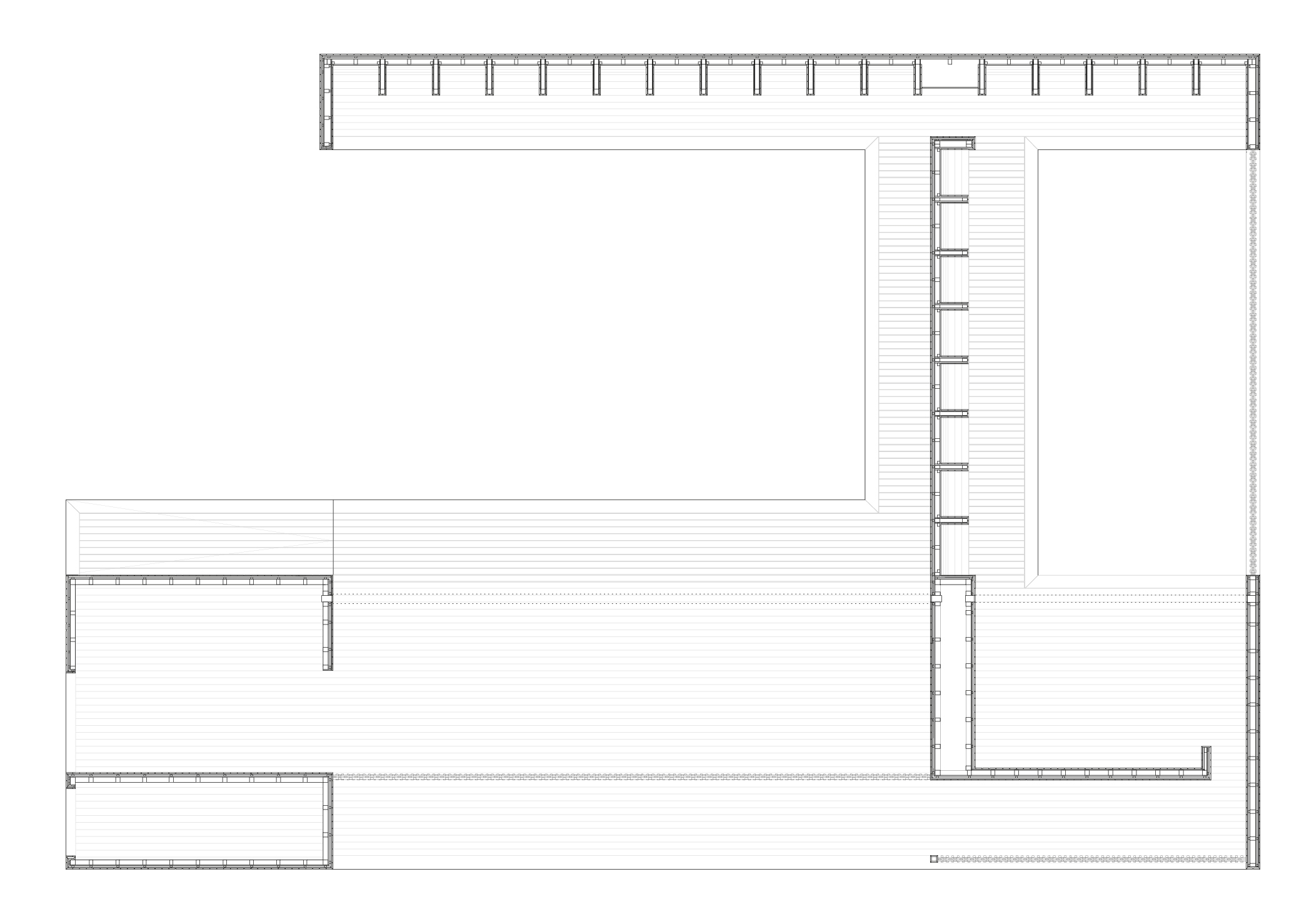

Design: In the summer of 2016, architecture students from TU Kaiserslautern worked together with refugees to create a community building in the Spinelli district of Mannheim. The students also developed the building themselves. The construction of the building primarily helped the refugees to integrate into the social environment. The building consists of an open community space with a three-sided courtyard, an introverted relaxation room with a garden, a kiosk and a workshop.

Wood: The building is of timber construction. In order to save costs and to make good use of the hands of all those helping, the structures chosen were simple and material-saving, but labour-intensive. This is symbolically reflected in the walls and beams, which are made of vertically and diagonally arranged slats and attached to a high-performance structure, giving the building a unique architectural appearance. A special technical detail: in the case of lattice beams, the structure is transferred from the timber lattice walls to the load-bearing beams, resulting in a load-bearing structure with a span of 7 metres.
Innenhof 2 | Innenhof

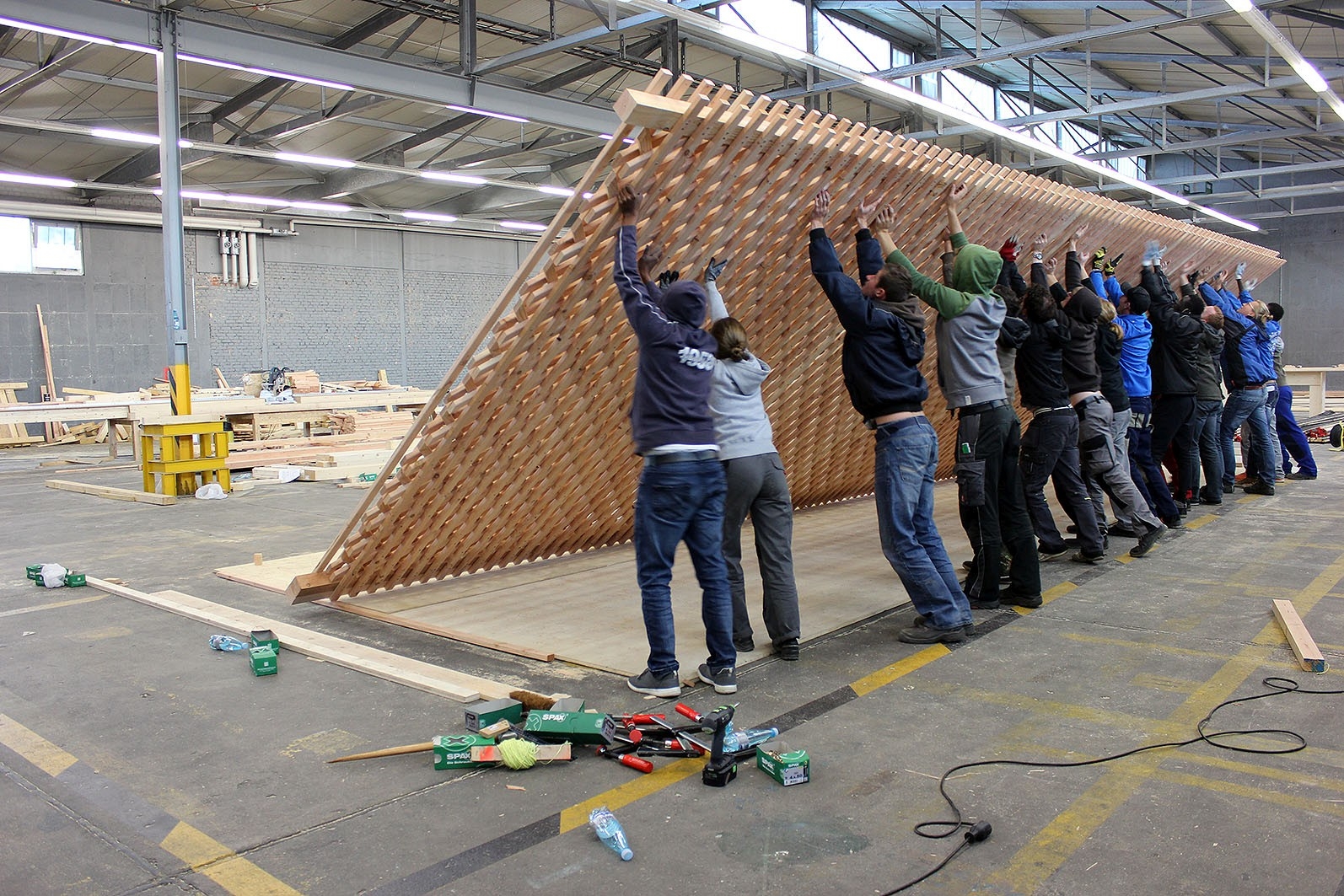

Gemeinsames Errichten 3 | Gemeinsames Errichten
Gemeinsames Errichten 4 | Gemeinsames Errichten
Einweihungsfest 5 | Einweihungsfest
Basic information
Year of Completion |  2016
Investor |  Presidency Karlsruhe (DE)
Architecture |  Design: TU Kaiserslautern, Fachbereich Architektur (Prof. Dipl.-Ing. Stefan Krötsch, Prof. Dr.-Ing. Jürgen Graf, Prof. Dipl.-Ing. Andreas Kretzer with students Atelier U20) (DE); planning approval and implementation: ARGE Krötsch Graf Kretzer Architekten und Ingenieure with students Atelier U20, München (DE)
Structural Engineering |  Prof. Dr.-Ing. Jürgen Graf, ARGE Krötsch Graf Kretzer Architekten und Ingenieure, München (DE)
Construction Time |  3 months
Number of floors |  1
Plot size |  700 m²
Gross floor area |  250 m²
Construction Costs (netto) |  680 EUR/m²
Awards |  Erskine Award 2017, Sweden; The Best Student Design-Build Projects Worldwide 2017; International Prize for Sustainable Architecture (nomination); Hochschulpreis Holzbau 2017

Technical aspects
Concept |  Timber frame construction, flat-roof ceiling beams
Woodworking |  Studentengruppe Atelier U20 mit Geflüchteten der Landeserstaufnahmeeinrichtung Spinelli; Handwerkscenter Holz, Mannheim (DE)
Origin of Timber, Certification |  Schwarzwald, Baden-Württemberg (DE)
Energy Systems |  unheated
U-Value Wall | Roof | Floor | Windows (W/(m²K)) |  non-isolated

Regional Wood Circular Economy Cost Saving 100% Wood
