Residential Buildings

Settlement Schorenstadt

Basel, Switzerland

Reihenhäuser 1 | Reihenhäuser
Sustainable, natural living close to Basel city centre: the new neighbourhood sets an example in terms of energy consumption and quality of life.
Design: The housing estate is located in the Hirzbrunnen district, close to the city centre. It consists of 43 terraced houses and two multi-family houses with 22 owner-occupied flats. Despite the dense construction method, the building layout ensures the highest possible degree of privacy - gardens, large roof terraces and loggias form private outdoor spaces. The floor plans of the multi-family houses can be freely arranged. Buildings that follow a curve are designed for both living and working, and the lines of the terraced houses express different typologies.

Wood: The buildings are built on a solid basement and are constructed in timber or hybrid construction. In multi-family houses, the load-bearing structure and staircases are made of reinforced concrete, while the non-load-bearing external walls are made of prefabricated timber frame elements.

Energy: The project is designed according to the criteria of the Swiss 2000 Watt Company and certified according to Minergie-P-Eco. In addition to the energy required for operation, the mobility energy resulting from the location of the building is taken into account. The energy required for the production and removal of construction materials is also included. These three components are defined with indicators and target values in the "SIA-Effizienzpfad Energie" guidance document.
Schindelfassade 2 | Schindelfassade

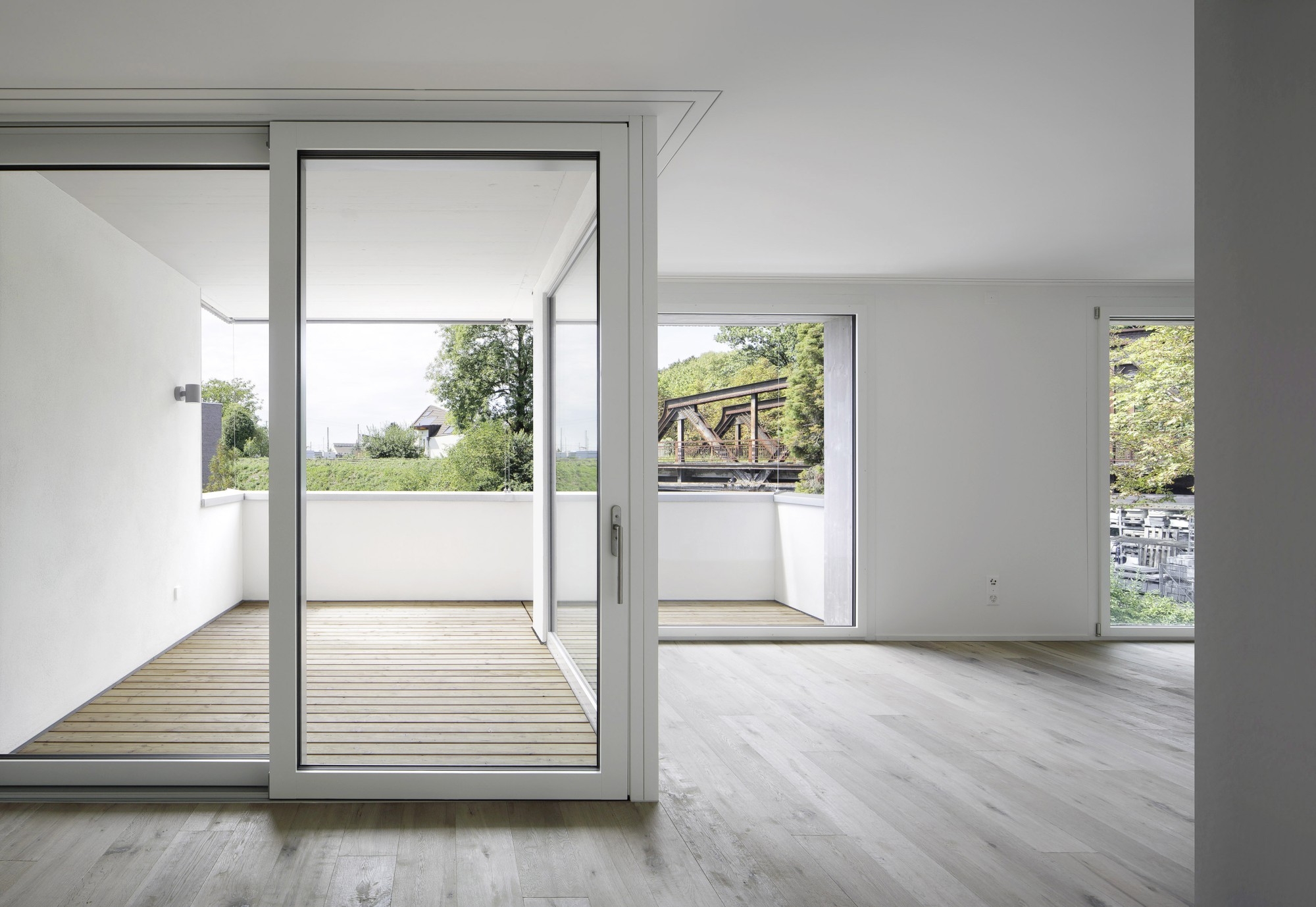

Wohnbereich im Obergeschoss 3 | Wohnbereich im Obergeschoss
Treppenhaus 4 | Treppenhaus
54m
Basic information
Year of Completion |  2015
Investor |  Implenia Development AG, Basel (CH)
Architecture |  Burckhardt+Partner AG, Basel (CH)
Structural Engineering |  Gruner AG, Basel (CH); Les: Pirmin Jung Ingenieure für Holzbau AG, Rain (CH)
Construction Time |  24 months
Number of floors |  4
Plot size |  11 149 m²
Gross floor area |  10 846 m²
Construction Costs (netto) |  1 928 EUR/m² gross area
Awards |  Real Estate Award 2012 (category Project Development)

Technical aspects
Concept |  Timber hybrid construction on solid basement floor; multi-family house: load-bearing system and staircase in reinforced concrete, façade in timber framing elements
Woodworking |  Implenia Schweiz AG, Rümlang (CH)
Origin of Timber, Certification |  PEFC, FSC certified (Switzerland, Southern Germany, Austria)
Traceability of Timber |  yes
Forestry Value Chain |  Export wood craftsman within 100 km
Energy Efficiency Standard |  Minergie P Eco, Swiss "2000-watt company" targets
Energy Systems |  Photovoltaics, CO2-neutral wood district heating, controlled ventilation of residential spaces with heat recovery, green electricity
Energy Consumption  |  30 kWh/m²a (final energy for heating, ventilation, hot water, auxiliary systems), 20.7 kWh/m²a required heat for heating
U-Value Wall | Roof | Floor | Windows (W/(m²K)) |  0,13 | 0,12 | 0,23 | 0,75
