Multistorey Buildings


Heilbronn, Germany

18 DE SKAIO new picture01 1 | 18 DE SKAIO new picture01
Heilbronn is part of the SKAIO project, 34 m high and therefore is the tallest wooden building in Germany – its wood stores 1,000 tonnes of CO2.

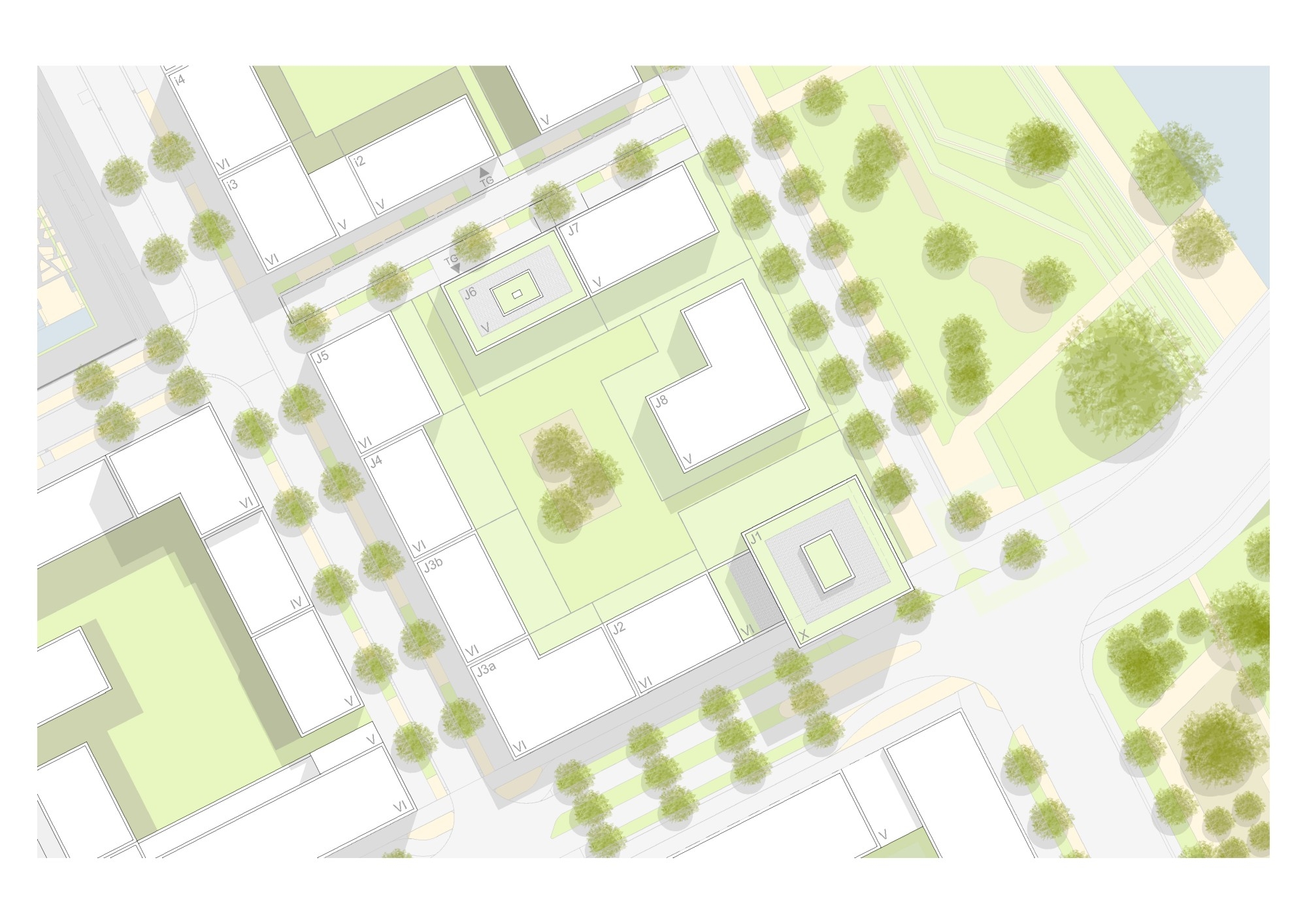

Design SKAIO represents an important contribution to the urban Neckarborgen project; in a mixed and vibrant new quarter as part of the 2019 Bundesgartenschau exhibition. In addition to the premises on the ground floor, there are 60 rental housing units, of which four are intended for the housing community of socially deprived people. About half of the units are designed as social housing. One- to two-bedroom apartments have between 40 and 70 m² of surface area and can be combined if necessary.  All apartments have a terrace or balcony. Community terraces and vegetable gardens are being created on the roof.

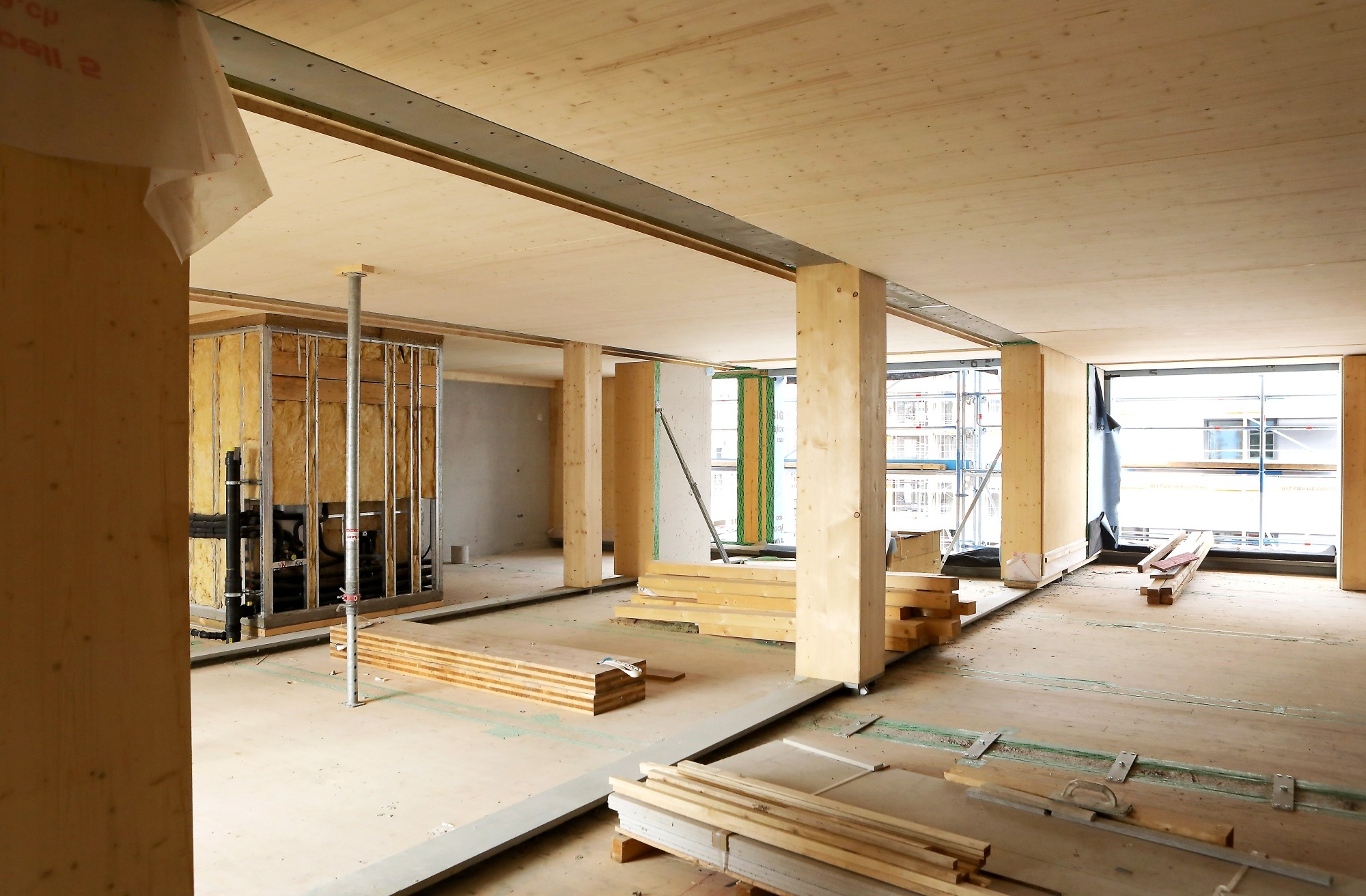

Wood: The building is designed as a hybrid structure. The main part of the building is made of wood (spruce), while the staircase and the basement are made of reinforced concrete. The bathrooms are prefabricated, self-supporting modular bathrooms. The load-bearing structure on the upper floors consists of a timber-concrete hybrid structure based on the principle of skeleton construction.

Energy: All requirements under the Energy Saving Regulation EnEV 2014 have been met. The cradle-to-cradle recycling concept allows for the highest possible recycling rate of materials - components are completely dry (e.g., no wet screed), each material can be separated according to its type. The project is also a candidate for DGNB Gold certification.
18 DE SKAIO new picture02 2 | 18 DE SKAIO new picture02
18 DE SKAIO new picture03 3 | 18 DE SKAIO new picture03
18 DE SKAIO new picture05 4 | 18 DE SKAIO new picture05
18 DE SKAIO new picture04 5 | 18 DE SKAIO new picture04
18 DE SKAIO new picture06 6 | 18 DE SKAIO new picture06
Basic information
Year of Completion |  2019
Investor |  Stadtsiedlung Heilbronn GmbH (DE)
Architecture |  Kaden+Lager GmbH, Berlin (DE)
Structural Engineering |  bauart Konstruktions GmbH Co. KG, Berlin (DE)
Construction Time |  12 Months
Number of floors |  10
Plot size |  750 m²
Gross floor area |  5 685 m² (above ground), 3 420 m² usable area
Awards |  DGNB-Certificate Diamant

Technical aspects
Concept |  Timber hybrid construction: entrance reinforced concrete base; cross-laminated timber ceilings (240 mm); external walls as a load-bearing frame of steel beams and laminated timber columns, facade with ventilation cladding of aluminium elements.
Woodworking |  Züblin Timber, Aichach (DE)
Origin of Timber, Certification |  FSC certified, only spruce wood, mainly from Germany (DE)
Energy Efficiency Standard |  EnEV Energy Saving Regulation 2014; Candidate for DGNB Gold Certificate
Energy Systems |  Underfloor heating; central exhaust fan system; ventilation of living rooms with window ventilators; fire protection: high-pressure water mist extinguisher with quick-release sprinklers
Energy Consumption  |  28 kWh/m²a (primary energy required), 53 kWh/m²a (final energy required)
U-Value Wall | Roof | Floor | Windows (W/(m²K)) |  0,12 | 0,15 | 1,36 | 1,0

Regional Wood Circular Economy Energy Efficiency
