Civil Engineering Works

Stuttgart Wood Bridge

Germany

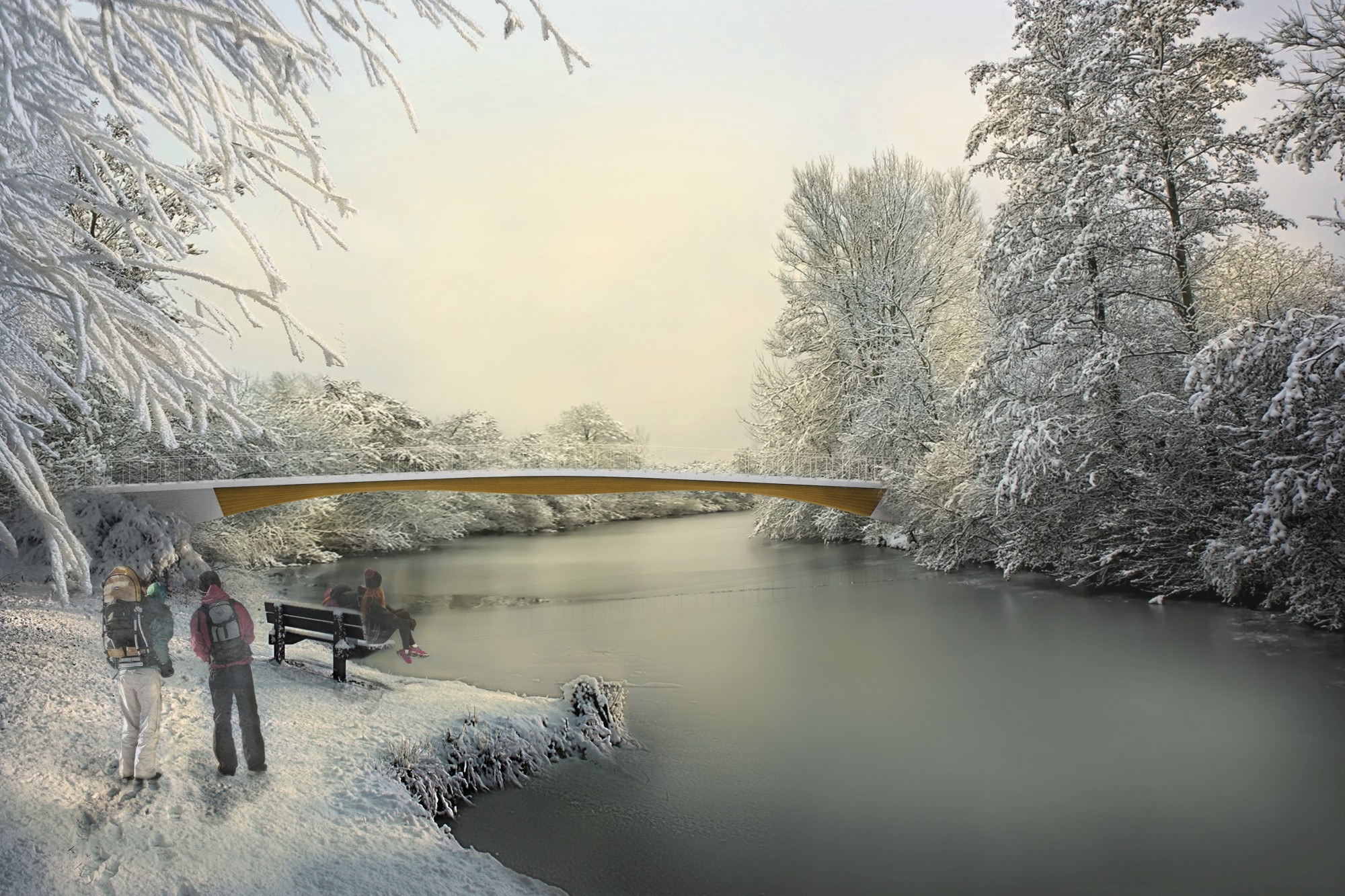

Rendering 1 | Rendering
A durable, economically viable and aesthetically pleasing bridge design that can be customized according to the local circumstances.
Design: The Stuttgart Wood Bridge was developed as part of a feasibility study which was undertaken by the advisory committee of the Baden-Württemberg timber cluster and funded by the European Region Development Fund. The goal of the study was to establish customizable and high-quality timber bridges as an alternative on the market. Three realizations of the bridge are part of a cycle route connecting all 16 municipalities in the Rems river valley which host the 2019 edition of state horticultural show. Two of the bridges are built in the town of Weinstadt, one in the town of Urbach.

Wood: The concept of an „integrated solid timber bridge“ constitutes an innovative new kind of timber bridges. The solid timber cross section is formed of glulam of various grading classes. High-grade timber is employed in the outer segments, subject to high structural stress, whereas lower grades of timber suffice for the middle segments. Steel rib bars, glued into the glulam elements parallel to the wood fiber and anchored in the reinforced concrete of the abutment, serve as connections. This design allowed for the first-ever realization of a “monolithic joint”. A diffusion-open sealing protects the construction from moisture. Large-sized tiles of textile concrete were used for the deck, with lead wool sealing the butt joints.

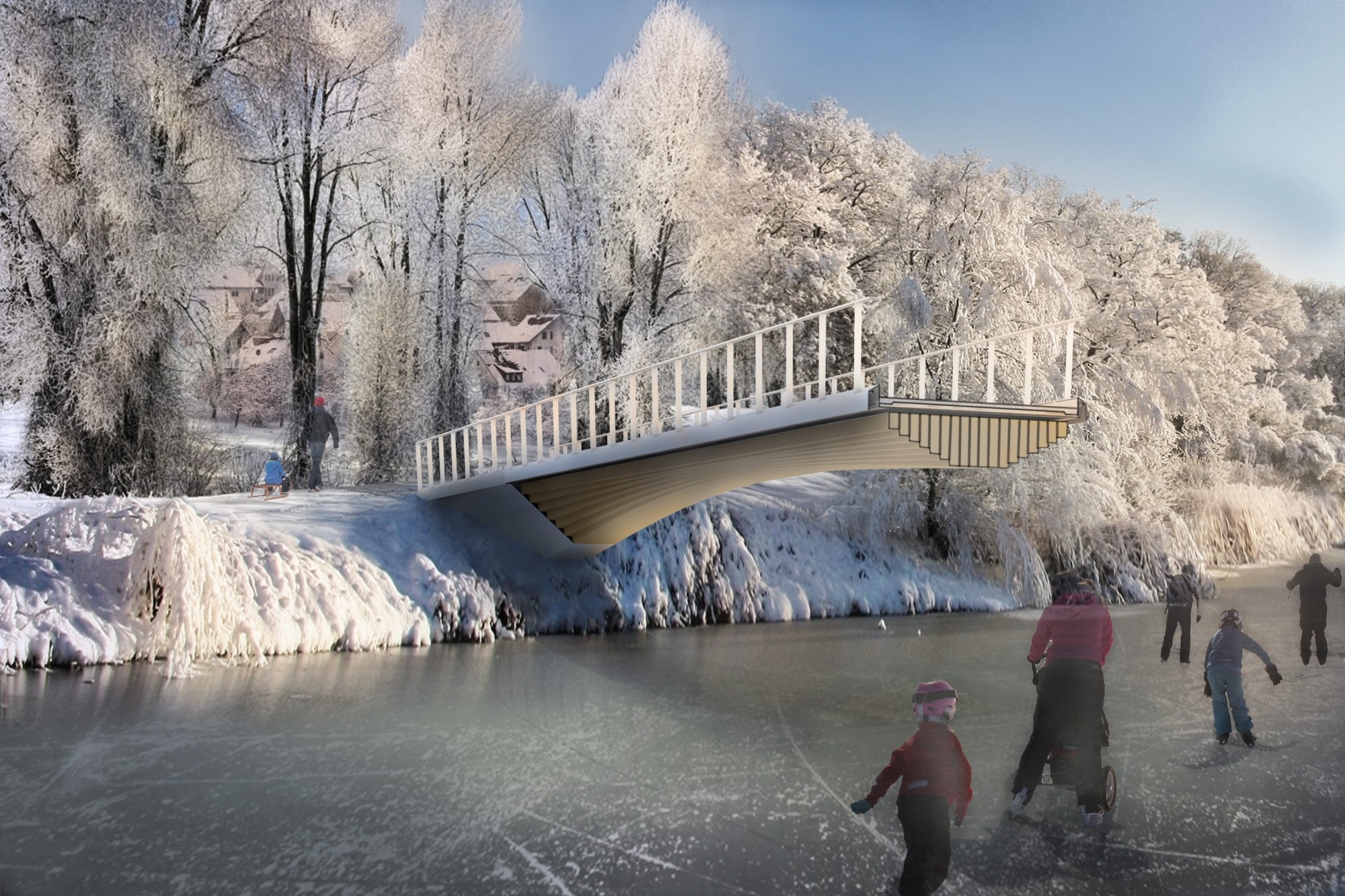

The bridge in winter 2 | The bridge in winter

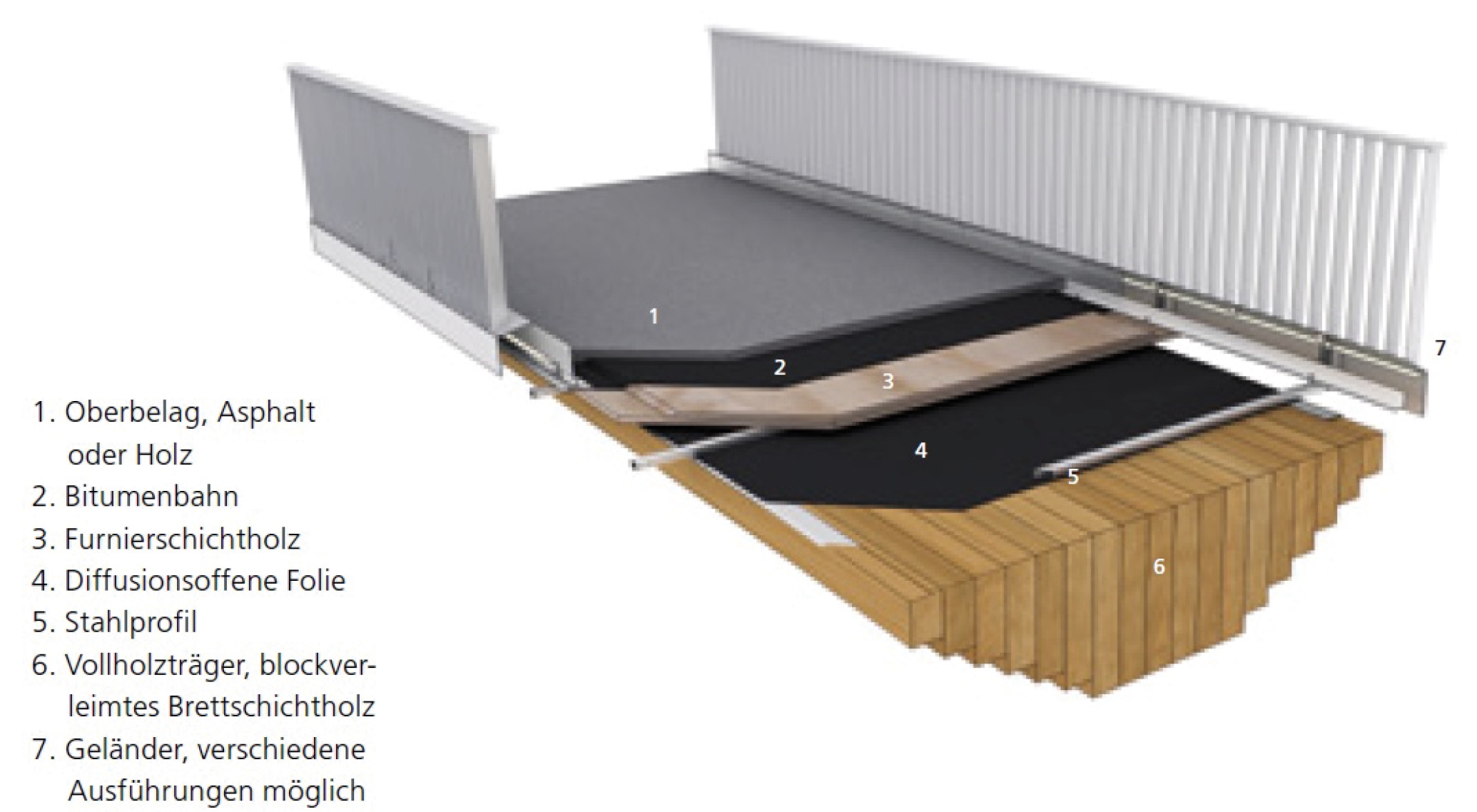

Cross section 3 | Cross section

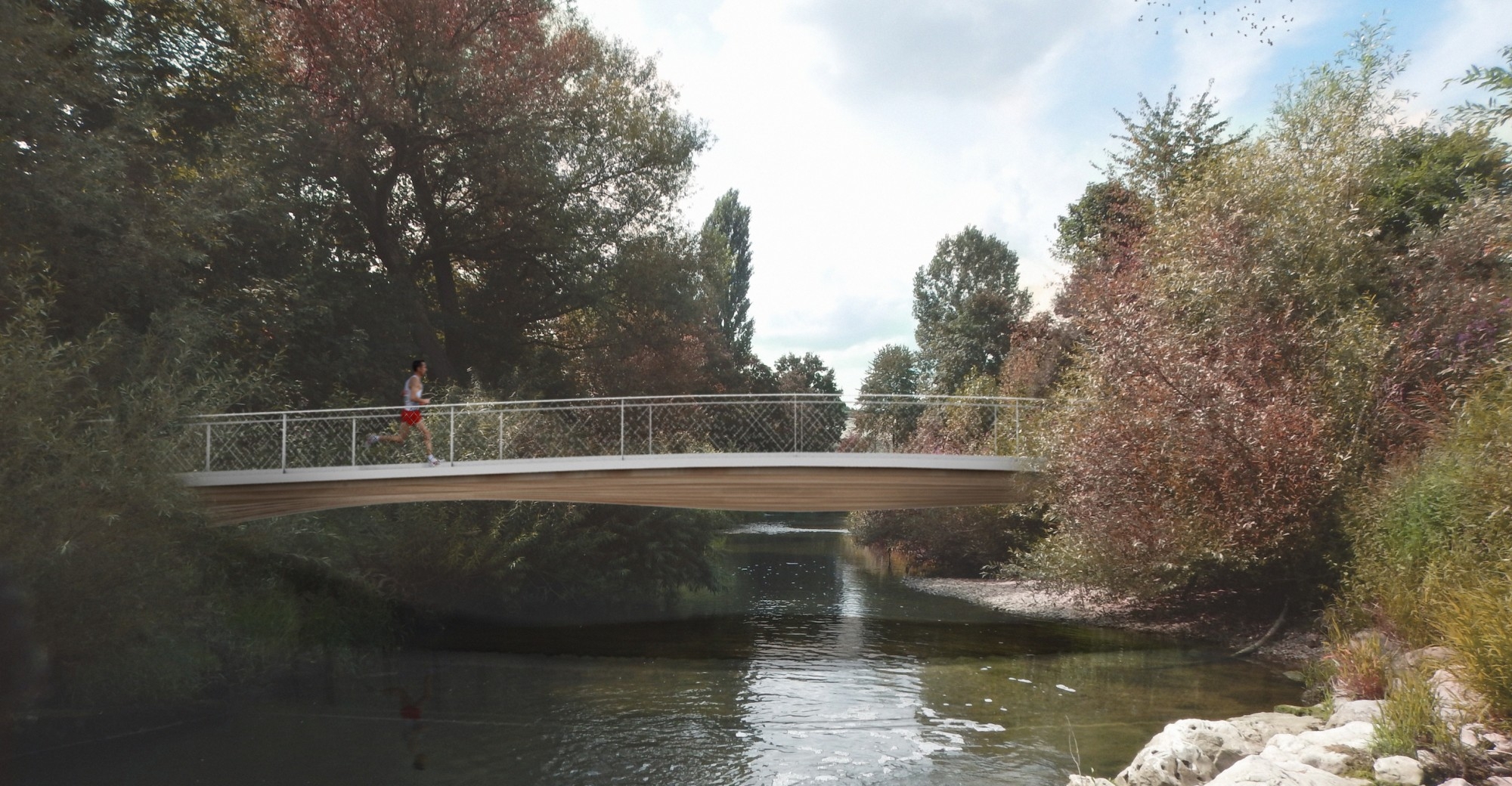

The bridge spanning the Rems river 4 | The bridge spanning the Rems river

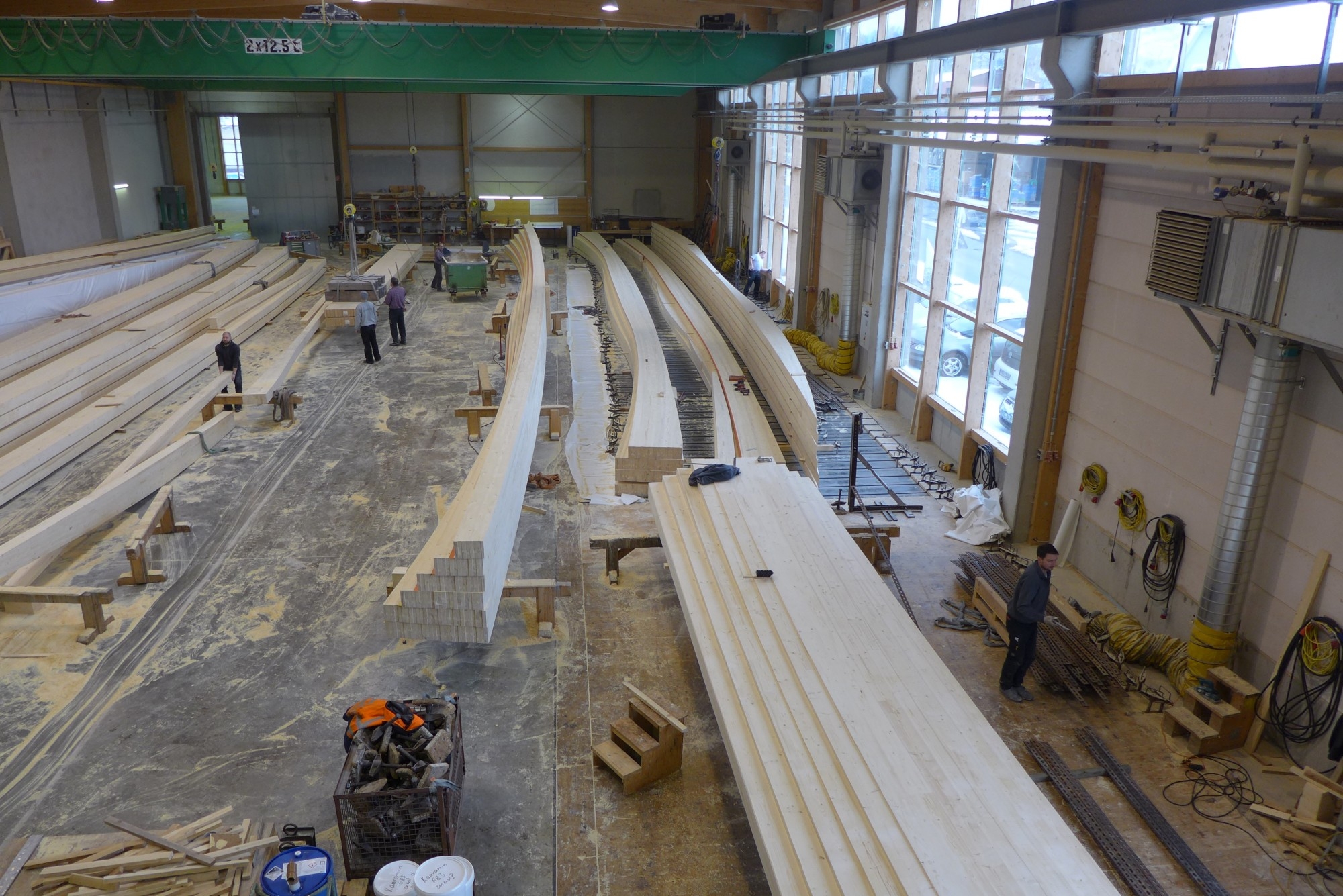

Block-glued glulam girders 5 | Block-glued glulam girders
17m
Basic information
Year of Completion |  2019
Investor |  Municipality of Weinstadt (DE), Municipality of Urbach (DE)
Architecture |  “Stuttgart Wood Bridge“ joint venture: Cheret Bozic Architekten BDA DWB, Stuttgart (DE) and Knippers Helbig Ingenieure GmbH, Stuttgart (DE)
Construction Time |  around 9 months
Construction Costs (netto) |  not yet known
Awards |  Deutscher Holzbaupreis 2017
Photography |  Pictures 1-5: “Stuttgart Wood Bridge“ joint venture

Technical aspects
Concept |  Solid timber cross section with glulam composite
Woodworking |  Schaffitzel Holzindustrie GmbH + Co. KG, Schwäbisch Hall (DE)
Origin of Timber, Certification |  Wangen im Allgäu (DE)


Energy Efficiency

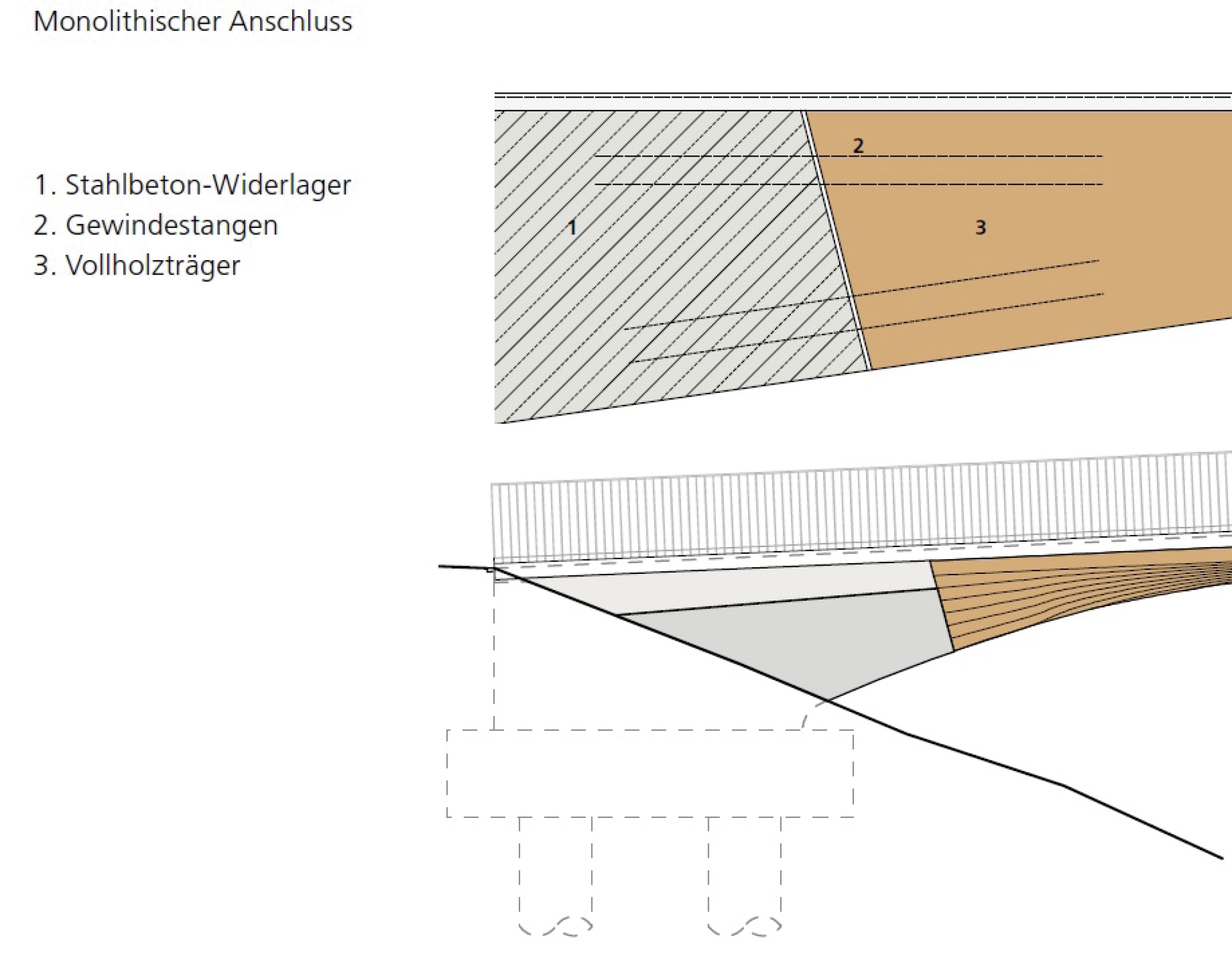

Constructive Scheme Constructive Scheme Concrete abutment design Concrete abutment design
